In our component library, we offer a wide range of components. To simplify the design process during project development, we have preset some styles for these components. However, you can still modify their styles based on these presets.
Tip: The list component is typically used as a container (similar to a folder), so it cannot be used when it’s empty. Usually, other components need to be added inside it.
Similar to the grouping panel, the list component is used to combine multiple components into a group. However, compared to the grouping panel, the list component is specifically designed to display text, images, videos, and other media components. Therefore, it is not recommended to add charts such as bar graphs within the list component.
When using the list component, we usually first divide the dashboard into areas that need to be displayed, then edit the list component and add other components within it. The image below is a common example of a list.
During the process of using the component, we can set it up according to the following steps:
If you are not very familiar with the components, you can find the component through the Components window and then add it, as shown in the image below:
If you are more familiar with the components, you can open the search box by pressing Ctrl+F on your keyboard and search for the component you want to add.
Click to select the component, and in the right-side “Style” settings window, you will see various categories of settings. Each category contains different settings, which may vary depending on the component.
Fixed styles refer to the component styles that remain constant once set, in contrast to conditional styles discussed in Section 3.2, which change based on data variations.
Next, we will provide a detailed introduction to each of these settings.
** Configuration item ** | Describe | |
---|---|---|
Opacity | 1)Using transparency according to personal preference or overall harmony can make the large screen layout more aesthetically pleasing.; | 2)A common use for this setting is to combine it with conditional styles/interactions/multi-state to achieve the display and hiding of components. |

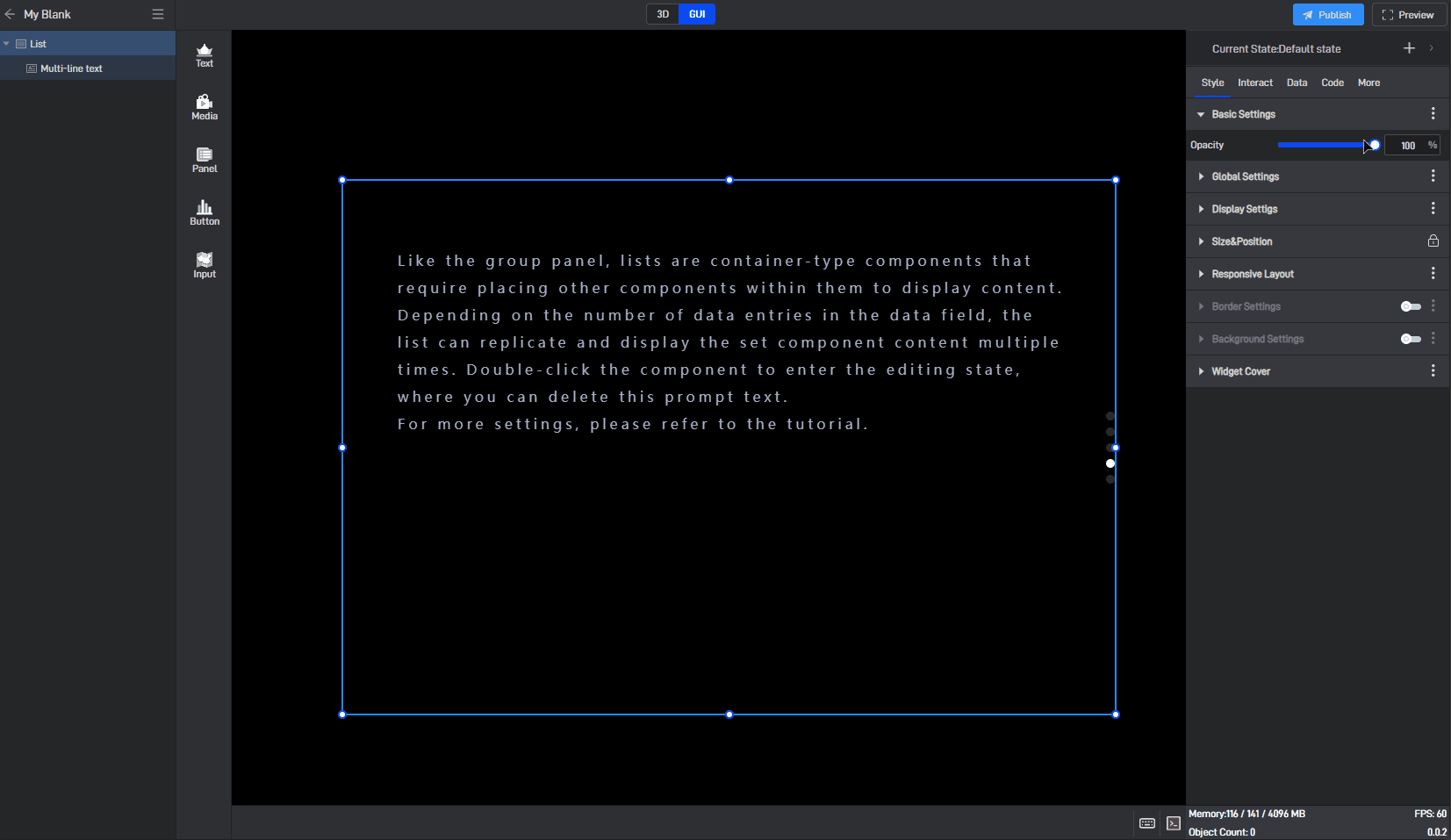

Transparency changes of the List, as shown in the figure below:
** Configuration item ** | Describe | |
---|---|---|
Switching Mode | There are two switching modes: single item and pagination. | |
Layout | There are three layout options: vertical, horizontal, and grid. | |
Page Transition | Page transitions can be set to either vertical scroll or** horizontal scroll**. | |
Items per Page | Customize the number of items displayed per page. The default is 1 item per page. | |
Show Divider Line | When the** “Show Divider Line”** button is enabled, you can configure the color, width, and border style of the divider line. | |
Color | You can configure the divider line color separately. | |
Width | Customize the width of the divider line. The default is “1px”. | |
Border Style | There are three border style options: “solid”, “dashed”, and “dotted”. |
Global settings for the List, as shown in the figure below:
** Configuration item ** | Describe | |
---|---|---|
Button Position | The button position can be set to **”left” **or “right”. | |
Button Size | Customize the size of the button. The default width and height are both “10”. | |
Button Offset | Customize the button’s offset. The default value is “0px”. | |
Button Shape | Two options are available for the button shape:** “rectangle”** and “circle”. | |
Button Color | The default button color can be configured separately. | |
Button Selected Color | The color of the button when selected can be configured separately. | |
Button Hover Color | The color of the button when hovered by the mouse can be configured separately. |
Single-page navigation settings for the list, as shown in the figure below:
** Configuration item ** | Describe | |
---|---|---|
Button Position | The button position can be set to **”left” **or “right”. | |
Button Size | Customize the size of the button. The default width and height are both “50”. | |
Button Offset | Customize the button’s offset. The default value is “0px”. | |
Button Style | Two button style options are available: “arrow” and “custom”. | |
Forward Button Image | When the button style is set to “custom”, you can add an image from your local files as the forward button image. | |
Forward Button Hover Image | When the button style is set to “custom”, you can add an image from your local files as the forward button hover image. | |
Backward Button Image | When the button style is set to “custom”, you can add an image from your local files as the backward button image. | |
Backward Button Hover Image | When the button style is set to “custom”, you can add an image from your local files as the backward button hover image. | |
Button Background Color | The default button background color can be configured separately. | |
Button Hover Background Color | The button background color when hovered by the mouse can be configured separately. |
Previous/next page navigation settings for the List, as shown in the figure below:
This section allows you to configure the display format of the data in the component.
** Configuration item ** | Describe |
---|---|
Enable Animation | Enable this button to activate animations in the component. |
Loop Playback | When this button is disabled, the animation will only play once when fullscreen mode is activated. When enabled, the animation will loop according to the set interval time. |
Single Stay Duration | Customize the duration for which the animation stays in one position. The default stay duration is “3 seconds”. |

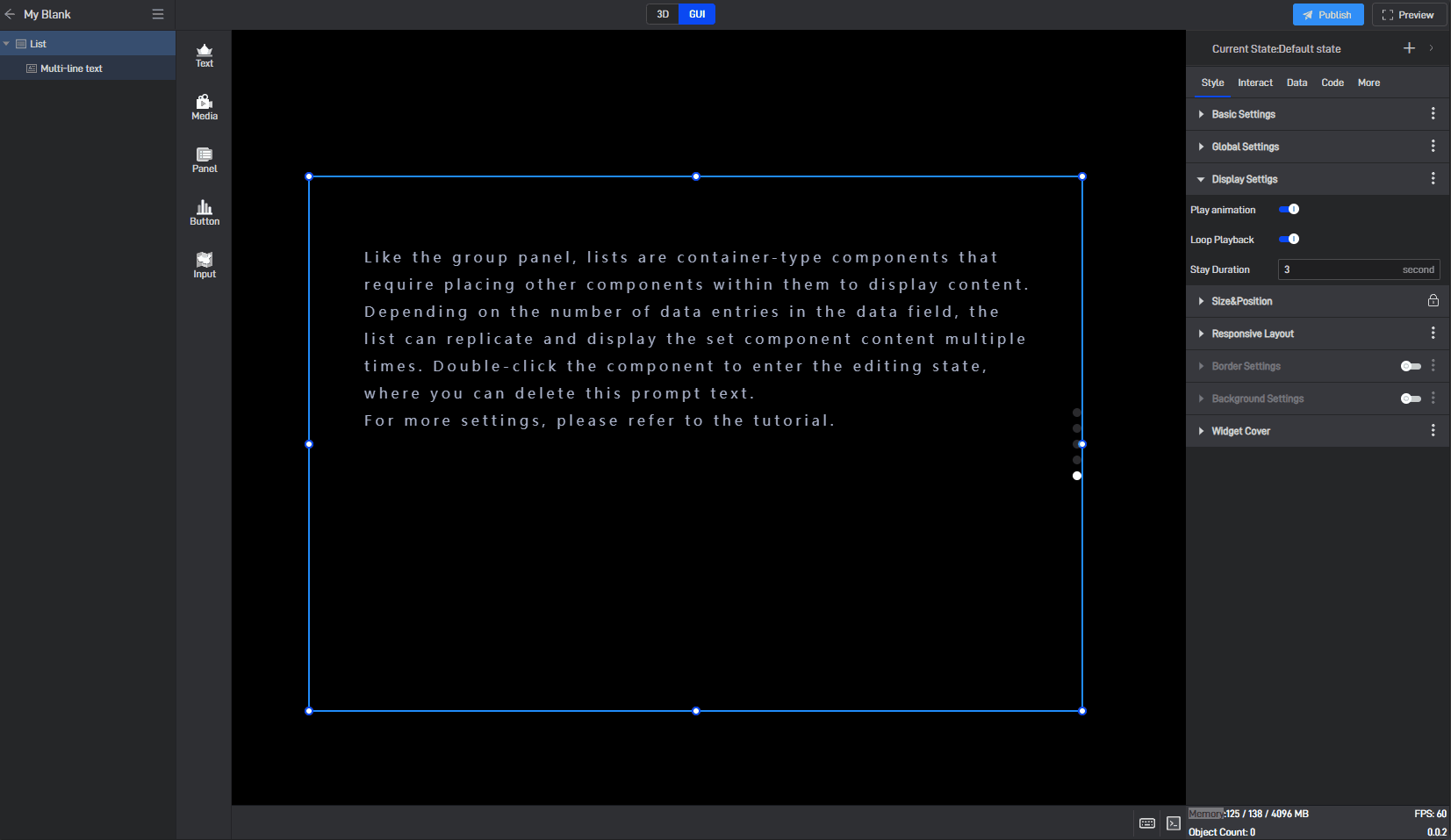

Display settings for the** List**, as shown in the figure below:
You can adjust the size and position by directly clicking and dragging the components, or by directly entering the width, height, X coordinate, and Y coordinate.
** Configuration item ** | Describe |
---|---|
Widget Size | Refers to the width and height of the component, measured in pixels (px). |
Widget Position | Refers to the X and Y coordinates of the component. The X coordinate is the distance from the left edge of the page to the left edge of the component, while the Y coordinate is the distance from the top edge of the page to the top edge of the component. |
Widget Rotation | In three-dimensional space, rotation can be input as any value, with the values corresponding to the angle of rotation around the X and Y axes. |

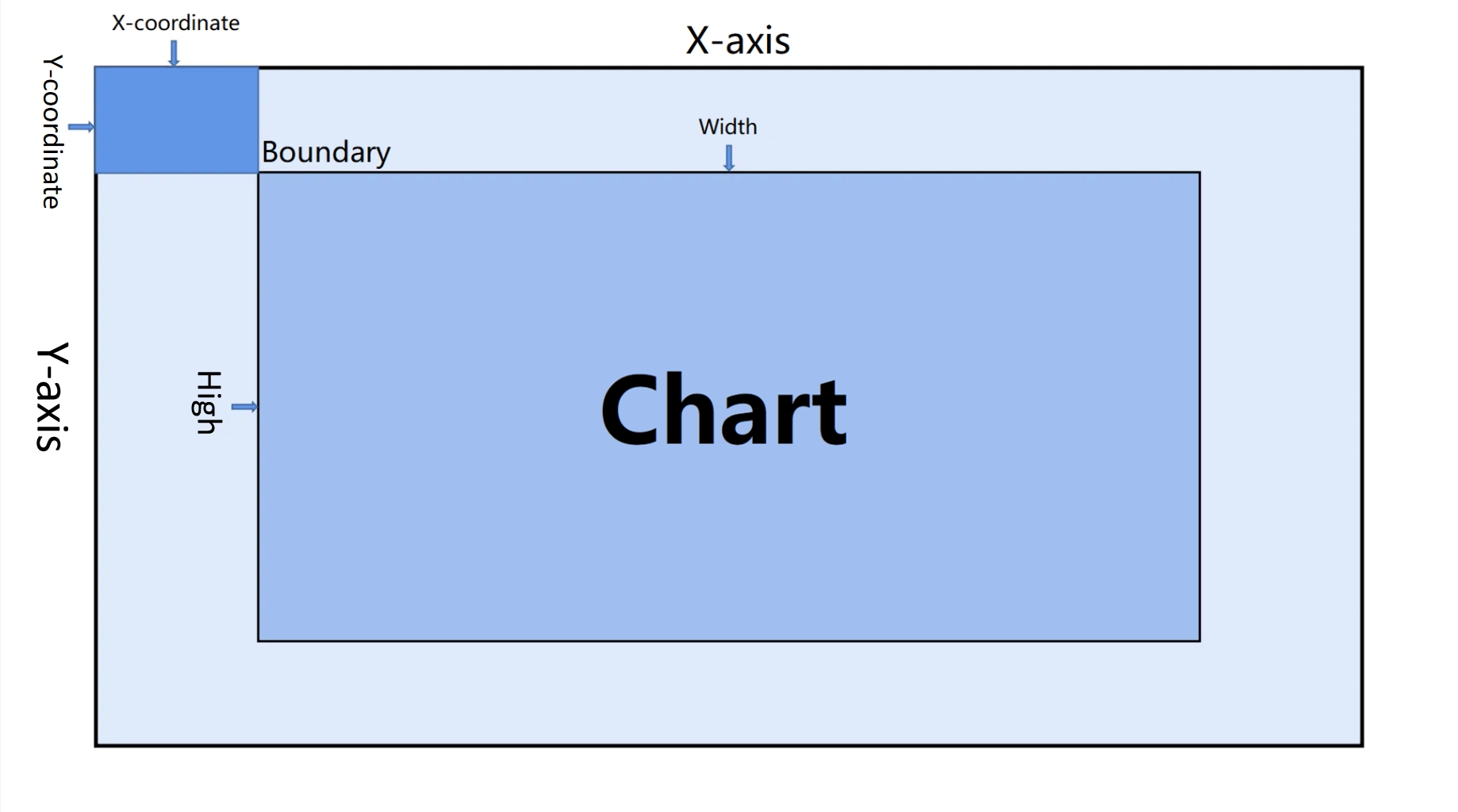

Image: Size & Position parameter diagram, as shown below:
After enabling the **”Border Settings” **button, the border style will be displayed in the component, and you will be able to configure the overall border style of the component.
** Configuration item ** | Describe |
---|---|
Color | Configure the color of the component’s border individually. |
Width | The thickness of the component’s border, with the default width set to “1px”. |
Corner Radius | The shape of the border, with the default radius set to “0px”. |
Style | Select from four border styles: “solid” , “dashed” , “dotted” , and “none”. |

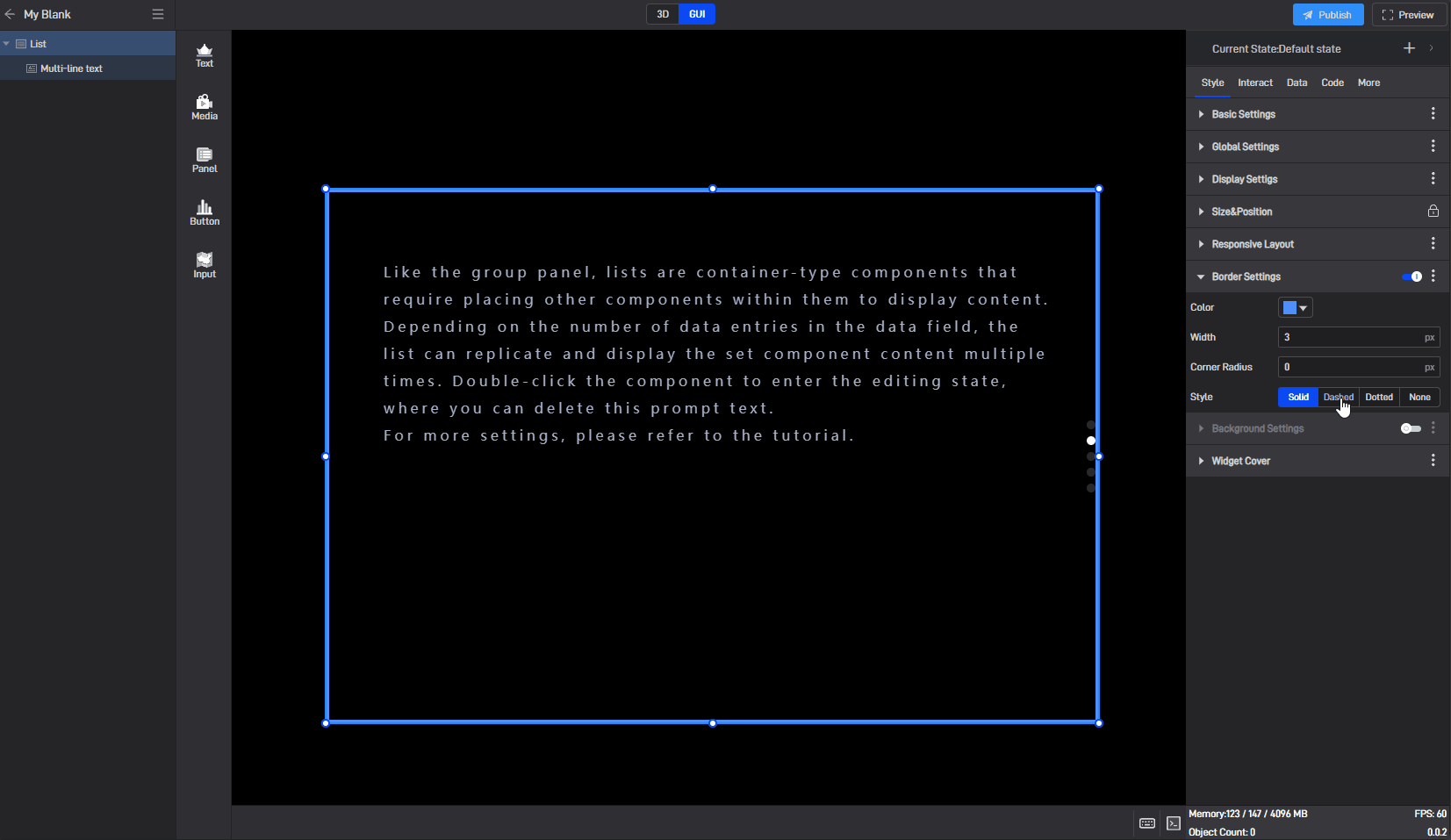

List border style, as shown in the image below:
By default, components have no background color. If you need to set a background color, you must first enable the “Background Settings” option.
** Configuration item ** | Describe |
---|---|
Color | Configure the color of the component’s background separately. |
Image/Video | Add a local image or video here to serve as the component’s background. |
Background Clip | Crop the local image/video after adding it. |
Fill Type | In “Stretch Fill” mode, the image will be stretched or compressed to completely cover the target area based on its size; in “Tile Fill” mode, the image will be tiled across the area while maintaining its original size and proportion. |
.9. Png | Turn on this button to enable .9 scaling. |
Edit .9 | Drag the blue pixel borders to edit and specify the area that can be stretched. |
Blur Background | Make the background blurry or out of focus, with the default blur level set to “0px”. |

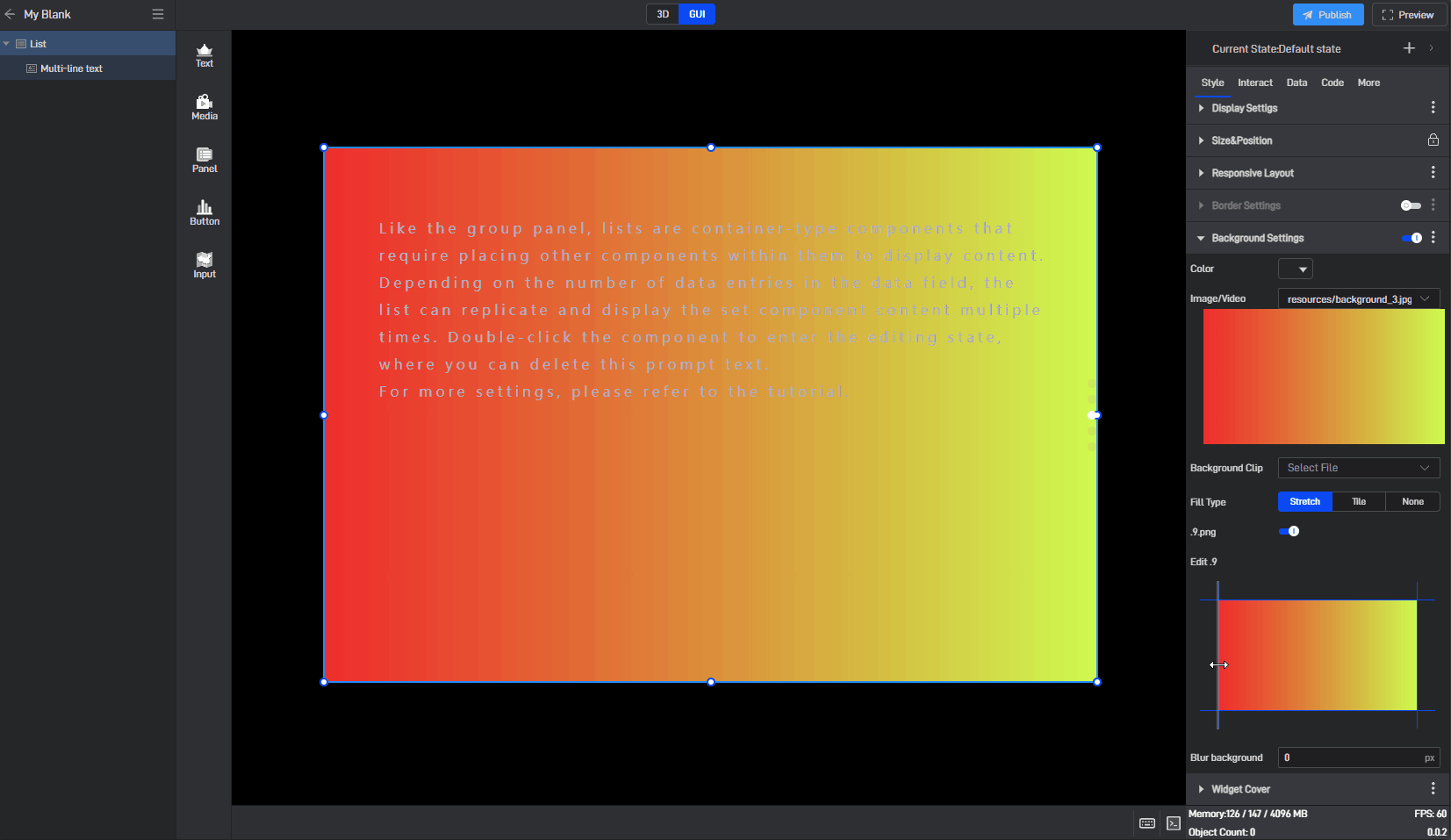

list use .9 fill background style, as shown in the following image:
list fill background style, as shown below:
Conditional styles refer to the styles of a component that change based on data conditions. (For more information on setting data conditions, please refer to the tutorial: Data Condition).
Almost all setting items can be set with conditional styles, but different setting items have slight differences when setting conditional styles. There are two specific methods:
Most setting items use Method 1 for conditional settings. The specific steps are as follows:
Take the “Opacity” setting item in “Basic Settings” as an example:
Click to select the component, move the mouse over the setting item, and you will see three dots (extended settings button) appear on the right side of the setting item name.
Click these three dots to open the extended settings window, where the first option is “Conditional Style” .
Additionally, you can open the extended settings window by right-clicking the setting item.
Click “Conditional Style” to open the conditional style settings window.
Click “+ Add Conditional Style” ,then select the data condition that needs to be triggered (the selectable data conditions must be existing data conditions).
Based on the current setting item, we can set the opacity value when Condition 1 is met, as well as the opacity value when no conditions are met.
After setting, the setting item will show a “Conditional Style Enabled” prompt.
Some setting items’ conditional setting methods are displayed directly within the setting item and can be set directly in that setting item. However, the conditional style for the basic single-line text can only be set using Method 1.
All modifications to setting items are essentially value changes, so all setting items can be controlled through data fields. The dynamic data field function is needed here.
Still taking the “Opacity” setting item in “Basic Settings” as an example:

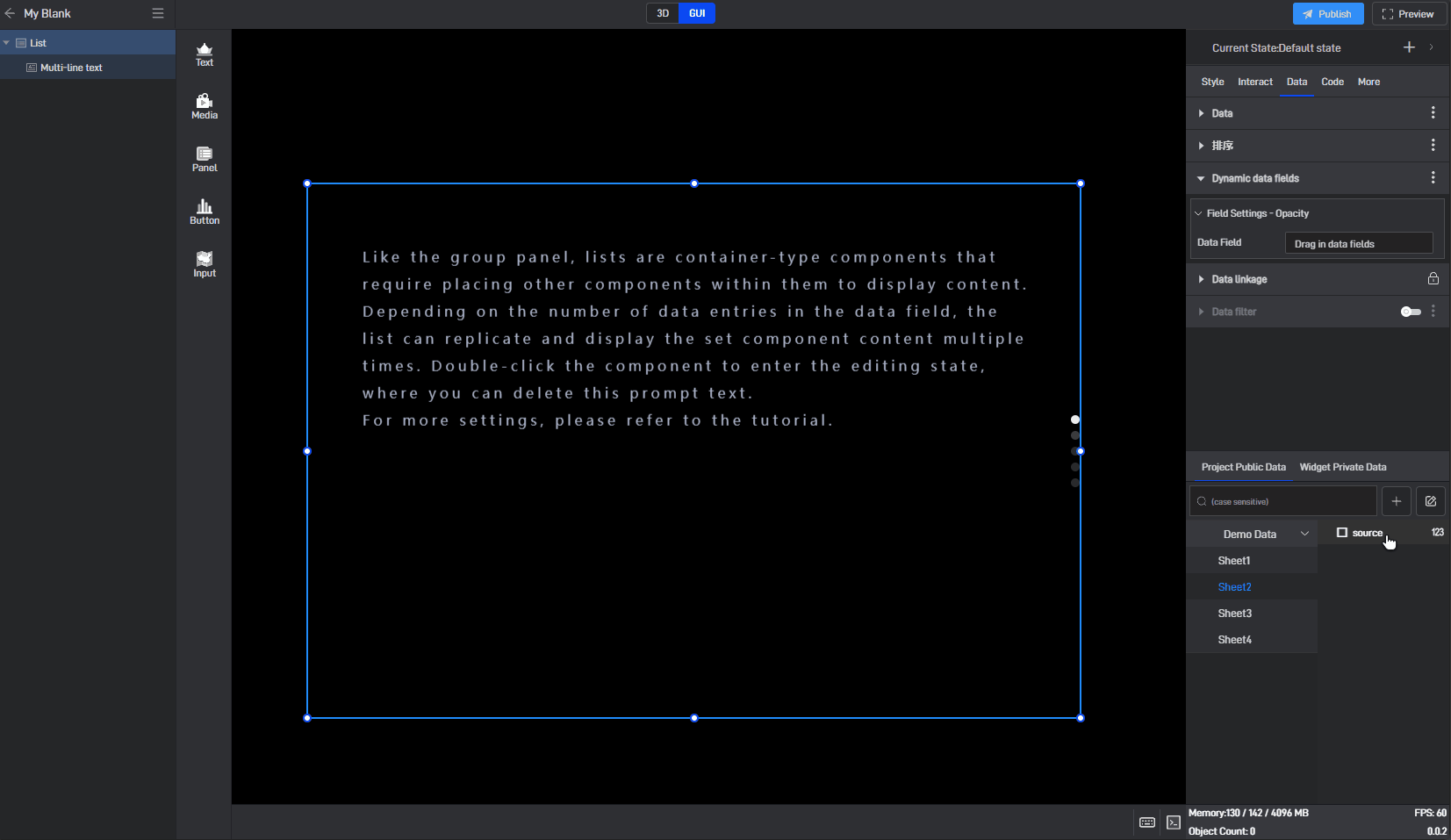

Open the extended settings window and click the third option, “Generate Data Field”.
After clicking, a prompt saying “Please set data field” will appear for this setting item.
Switch to the “Data” settings interface. At this point, you will see a newly added “Dynamic Data Field” setting item, and a related field has been generated for the previously selected “Opacity” setting item.
Next, simply add a data field here, and you can control the opacity through data.
Adding a data value of “0” to the data field will change the opacity value to “0” via the dynamic data field, thereby hiding the component.
Click to select a widget, and in the “Interact” setting window on the right, you can add or delete interactions for the current widget.
Click on the widget to select it, and in the right-side “Code” settings window, you can configure secondary development settings for the widget.
Secondary development needs to be achieved by loading JavaScript script files.
Click “+” to add settings. Multiple scripts can add multiple settings.
During the secondary development process, we can control the style of the widget. If we want to control a certain setting item, we can first view the secondary development code example of the setting item in the style.
Take the “Opacity” setting item as an example:
Open the pop-up window of the extended settings and click “Sample code”.
You can see the secondary development code sample for this setting item.

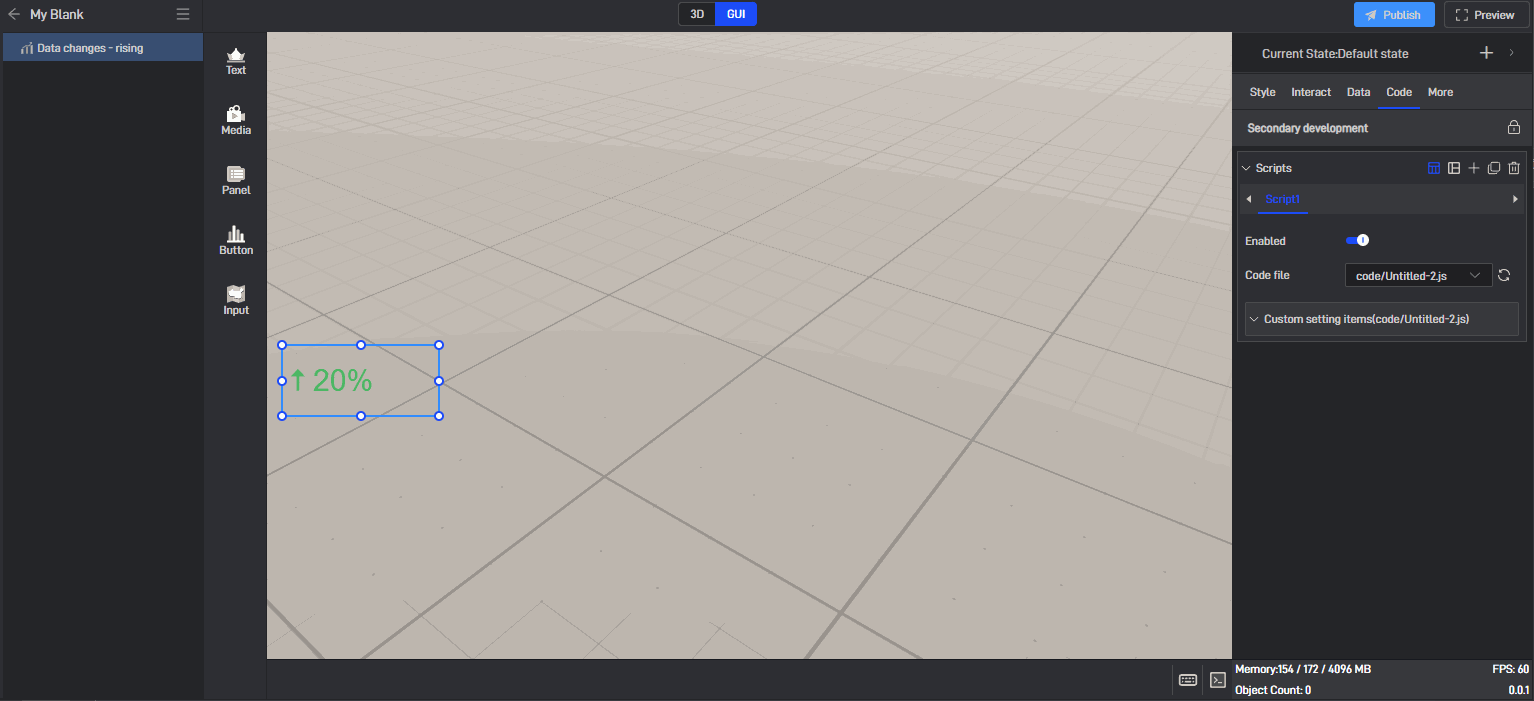

Here is a simple secondary development example:
Secondary development function: widgets automatically move to the right
Sample code:
1 | /** |
Click “Select File” to add the JavaScript file.
Each widget has a default state property, which contains all the above settings.
But we can also add multiple states, so that each state will contain all the above settings, and these states are independent of each other.
We can add new states in the following two ways:
Click the “+” in the upper right corner to add a new widget state.
In the state setting window, we can set the name of the state.
By default, all new states are kept consistent with the default state.
We also open the advanced settings in the window to set the follow object of the new state.

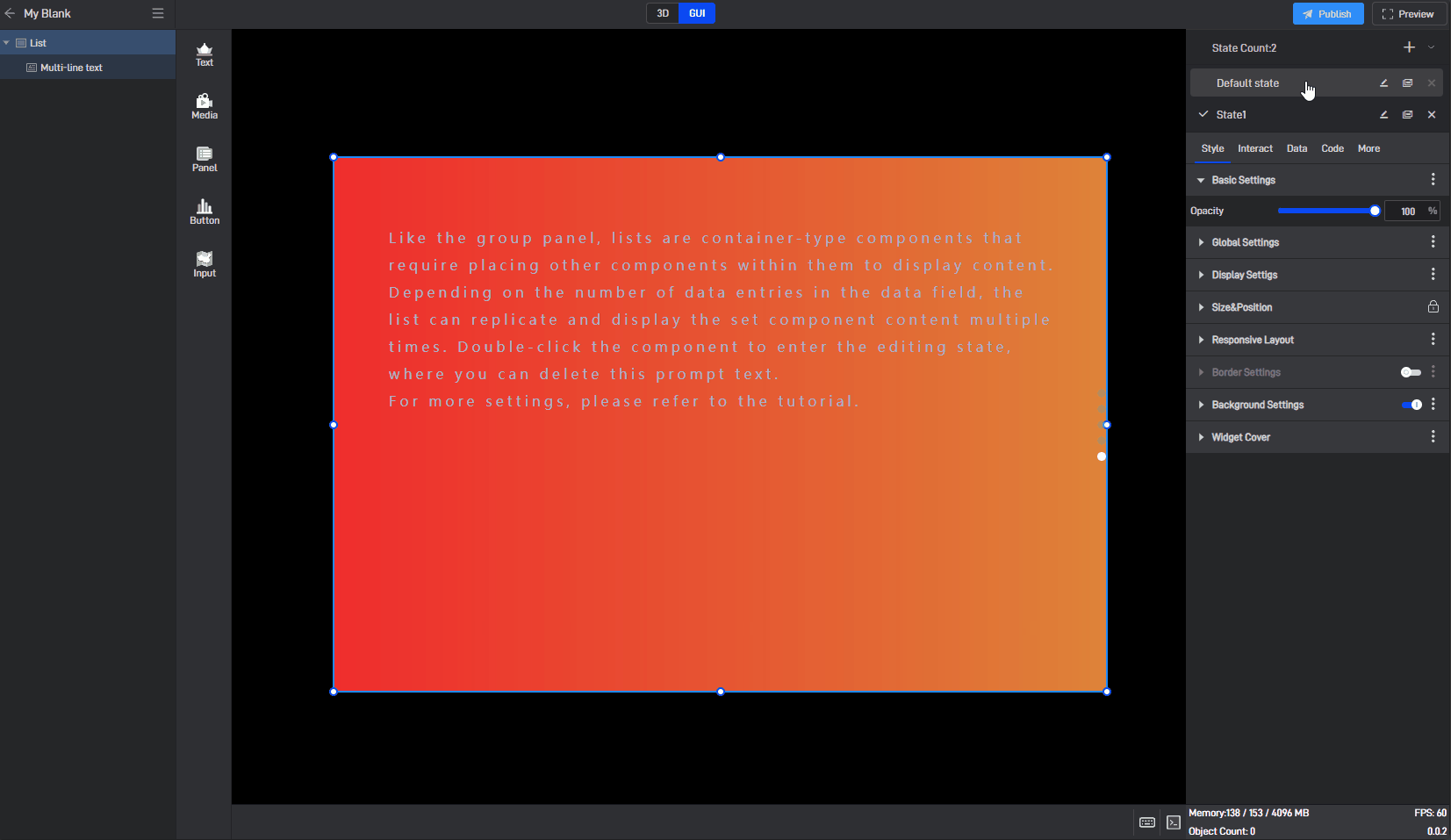

Click the state name in the upper right corner to expand the state list. After expanding, you can see all the states of the current widget.
In this state list, we can rename, copy and delete the state.
Click the copy button on the right side of the state name to copy the current state to a new state. All settings of the copied new state will be consistent with the copied object state.
When editing a project, we can manually switch widget states by clicking on different states in the state list.
Switching widget states through click interactions usually involves clicking other widgets to switch the state of the current widget, so the interaction is set on other widgets rather than on the current widget. For example, clicking a button switches the display and hide states of the current widget.
First, set a hidden state for the widget (the default state is considered as the visible state).
Click “+” to create a new “Hide” state, and then change the widget opacity to “0%” in this state.

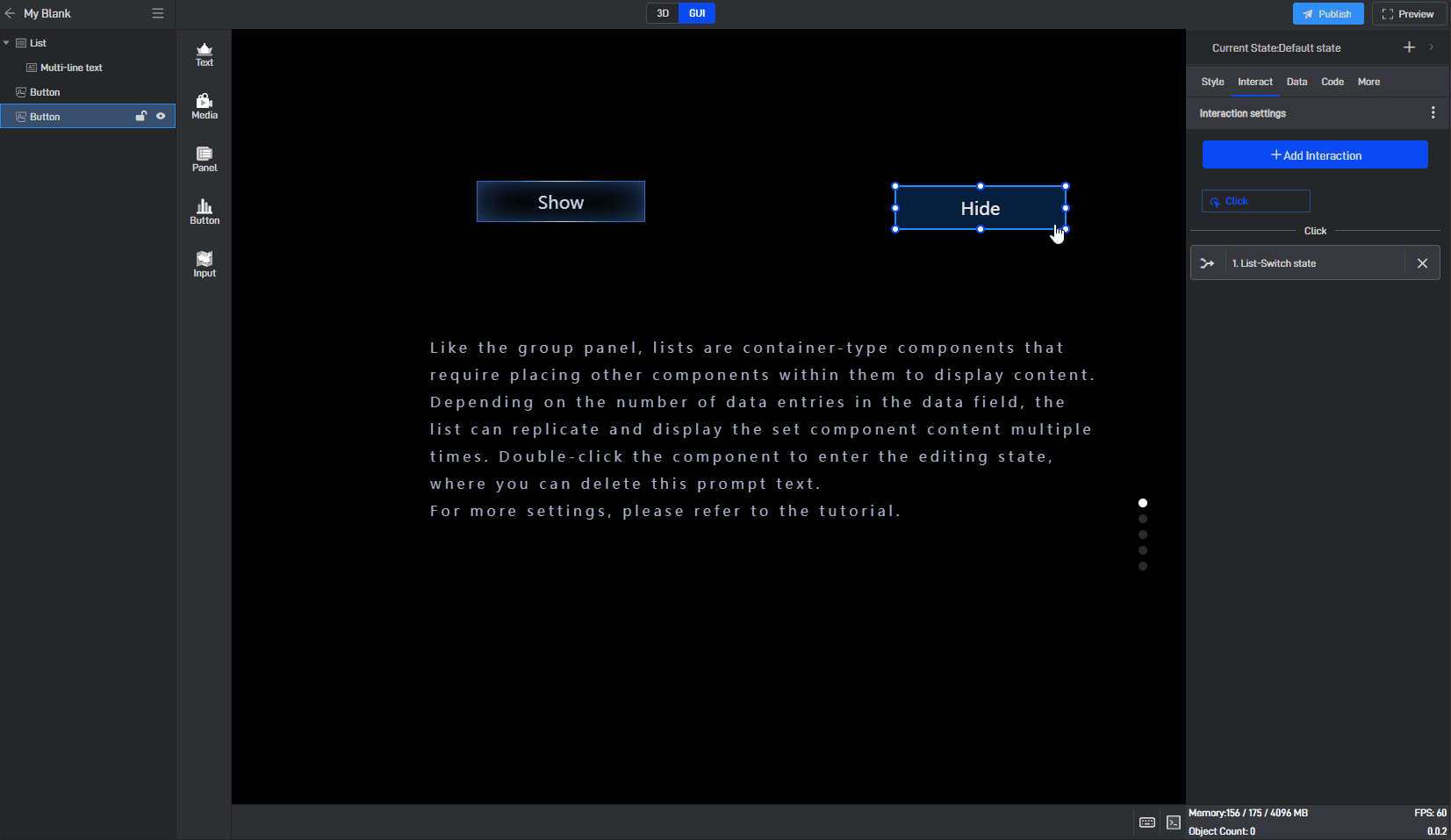

Add a “Show” button and a “Hide” button.
Add an interaction to the “Show” button , and switch the widget to the default state (show state) after clicking.
Add an interaction to the “Hide” button to switch the widget to the hidden state after clicking.
This achieves the effect of switching the display/hide of components by clicking the button.
In the style settings, some settings have a lock icon on them, which means that this setting item in all current states has been locked to the default state, which means that if this setting item is modified, this setting item in all states will be modified uniformly.
This is a function that allows you to uniformly modify the same setting items in multiple states in a widget’s multiple states.
If you don’t want to lock it, you can click to unlock it, and then this setting item in all states will be unlocked.
If you want to lock other settings, you can click the three dots on the right side of the setting item and then lock it.
